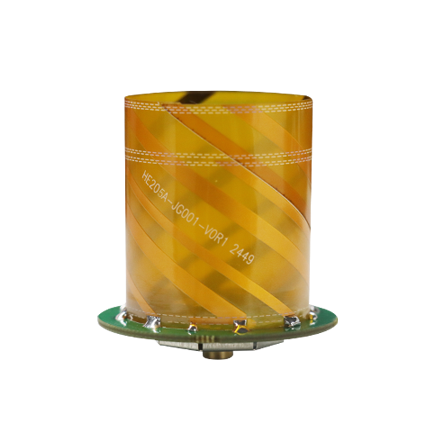

Compact Dual-Band Embedded Helix Antenna for UAVs

Key Features

• Small Form Factor, Lightweight, Designed for Integration

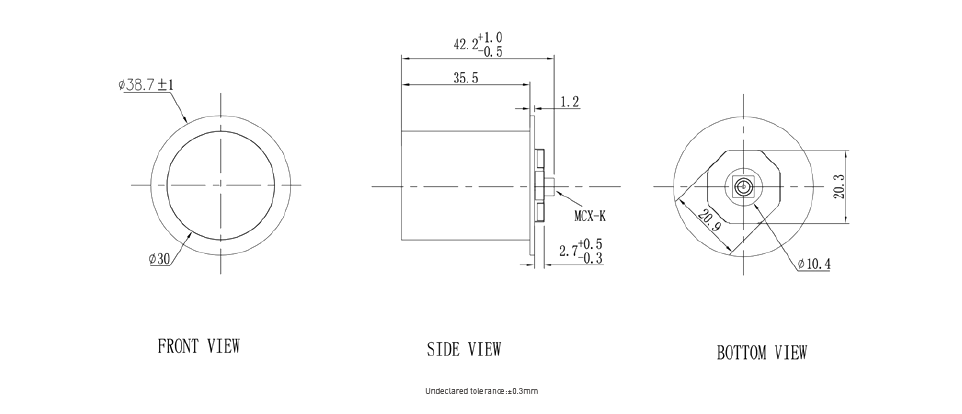

  With a compact Φ38.7 × H39.4 mm design and a weight of just 7 g, the HX-HE205A integrates the antenna and circuitry into a single lightweight unit, minimizing UAV payload while enhancing portability and enabling seamless integration into compact positioning systems.

• Advanced Patented D-QHA Technology

  Harxon’s patented D-QHA technology delivers outstanding wide-angle circular polarization (WACP), enabling stable reception of low-elevation satellite signals while maintaining minimal phase center variation, which is critical for consistent and reliable performance in high-precision positioning applications.

• Strong Anti-interference Performance

  An optimized circuit layout and robust pre-filtered LNA provide excellent out-of-band interference rejection, helping suppress unwanted electromagnetic interference while ensuring reliable GNSS signal reception and stable positioning performance for seamless integration into demanding positioning solutions.

• Tracking in Challenging Environments

  High gain and a wide radiation beam enable excellent reception of low-elevation satellite signals, allowing the antenna to effectively track visible satellites under tree canopies, near buildings, and in other challenging environments while providing reliable high-precision positioning data.
